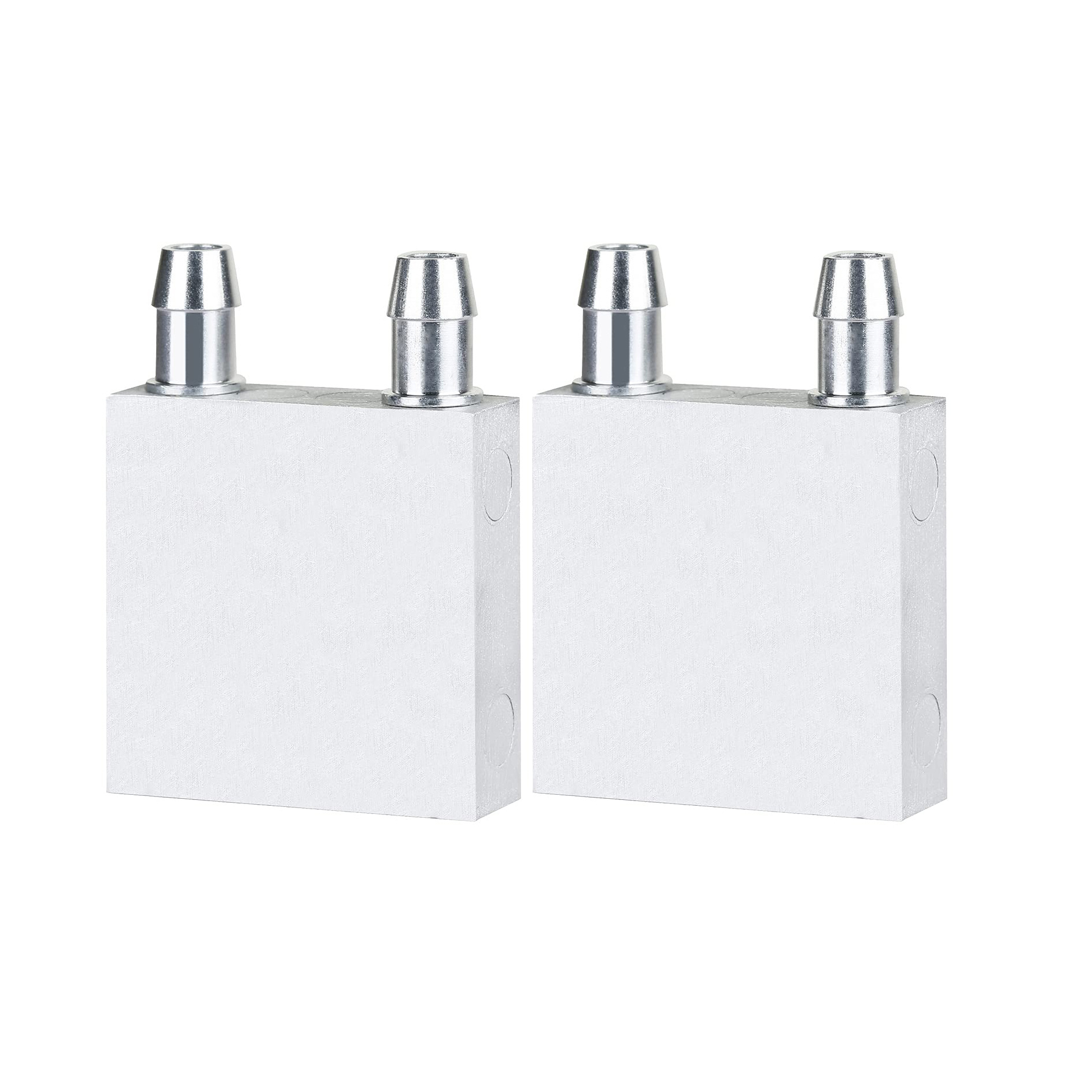

Customized Aluminum Liquid Cold Plate Heat Exchanger
We have been providing thermal solutions over 15 years for almost every industrial application field covering electronics, power generations, data centers, new energy, automobile, medical, chemical and construction machinery.
Category:
Liquid Cooling Plate
Enter product details or other specific requirements to receive an accurate quote. We will reply within 24 hours.
|
PRODUCT DESCRIPTION |
||
|
NO. |
ITEM |
DESCRIPTION |
|
1 |
Material |
Pure copper T2 |
|
2 |
Dimension (L*W*T) |
Up to 500*500*15 mm |
|
3 |
Cooling Capacity |
1000 to 3000 W |
|
4 |
Working Pressure |
3 to 4 bars |
|
5 |
Flatness |
0.15 mm |
|
6 |
Surface roughness |
3.2 um |
|
7 |
Flow rate |
5 to 10 L/min |
|
8 |
Manufacturing Method |
CNC machining Plus vacuum brazing |
|
9 |
Joining Method |
Vacuum Brazing |
|
10 |
Cooling Method |
Liquid cooling |
|
11 |
Surface Finish |
Mill finish |
|
12 |
Coolant |
Deionized Water,Inhibited Glycol and Water,Dielectric fluid |
|
13 |
Warranty time |
1 year |
|
14 |
Place of Region |
Jiangsu province of China |
|
15 |
Reference Standard |
GB/T 3190-2008,GB/T 14846-2008,ISO 2768 |

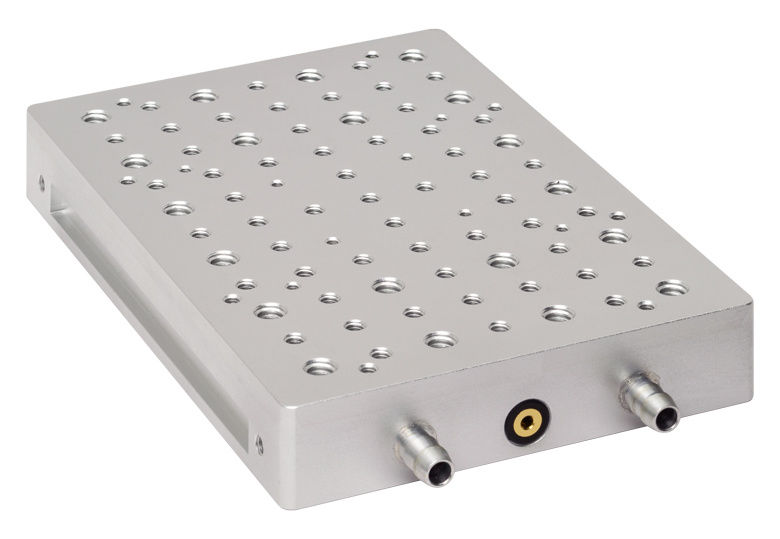

Metalli's cold plate technologies include
◆ Vacuum brazed or controlled atmosphere brazed and CNC machined performance fin cold plates and chassis
◆ Friction Stir Welded (FSW) performance-fin cold plates and chassis
◆ flat tube cold plates

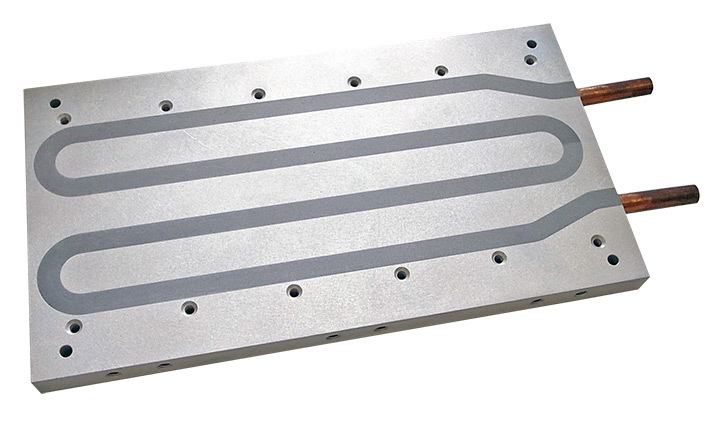

◆ Press lock Copper tubed cold plates
◆ Vacuum brazed and CNC machined copper cold plates
◆ Stamped and vacuum brazed cold plates
◆ Gun-drilled custom cold plate
◆ Custom channeled cold plate with ladder configuration
◆ Inner-Finned Brazed Cold Plates
◆ Aluminum extruded and welded or brazed cold plate
◆ Aluminum die casting and welded or brazed cold plate
We also supply value added components as below
● Fittings and connectors
● Hoses and tubes
● Heat exchangers or radiators
● Pumps and reservoirs
● Fans
● Other accessories

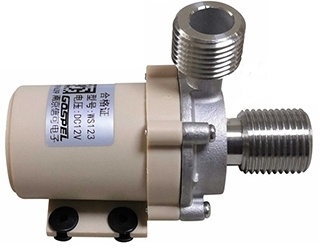

▲ Radiator ▲ Pump

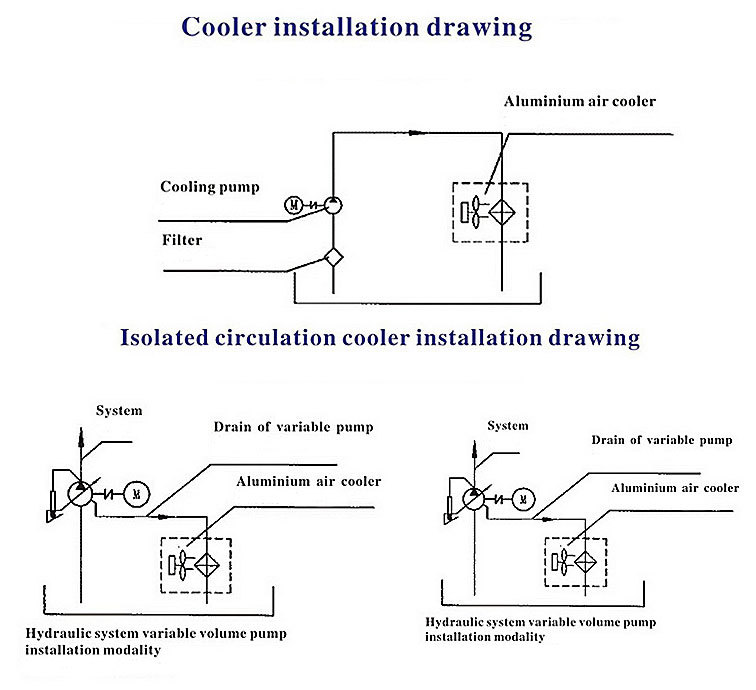

Brief of a liquid cooling system
The cold plate is the component of the liquid cooling system that interfaces with the heat source. Cold plates vary widely in complexity and construction depending on the application needs. A cold plate can be as simple as a copper tube attached to an aluminum plate or they can be extremely complex utilizing multiple technologies to achieve optimized heat transfer. These technologies can include high heat transfer fins, highly engineered micro or meso channels, or varied manufacturing processes such as vacuum, CAB, or dip brazing.
Expert in Heat Exchanger
Nanjing Metalli is a leading technology research company in China's "Aluminum Plate-Fin Heat Exchanger". It is founded by a group of highly skilled experts with more than 10 years of experience in design and manufacturing in the heat exchanger industry, focusing on heat management products.
80% of the company's products are exported to many countries and regions around the world (Germany, Russia, the United States, Japan, etc.) and domestically Out of the user's praise.
