High Perfomance Battery Liquid Cooling System
We have been providing thermal solutions over 15 years for almost every industrial application field covering electronics, power generations, data centers, new energy, automobile, medical, chemical and construction machinery.
Category:
Liquid Cooling Plate
Enter product details or other specific requirements to receive an accurate quote. We will reply within 24 hours.
|
PRODUCT DESCRIPTION |
||
|
NO. |
ITEM |
DESCRIPTION |
|
1 |
Applicable Temperature | -40ºC~72ºC(-40ºF to 161.6ºF) |
|
2 |
Dimension (L*W*H) |
Max. 2000*1000*1000 mm |
|
3 |
Cooling method | Liquid cooling or other custom cooling solutions |
|
5 |
Cooling Capacity | 1 to 10 KW |
|
7 |
Coolant material | Water, glycol, refrigerant, or PCM, etc |
|
8 |
Material | Aluminum alloy or copper for cooling elements |
|
9 |
Total System weight | Below 60 kgs |
|
10 |
Style | OEM |
|
11 |
Application | Oil Cooler, Water Chiller, Industrial Aircondition |
|
12 |
Principle | Liquid Cooling or Other Custom Cooling Solutions |
|
13 |
Type | Battery Thermal Management System |
|
14 |
Transport Package | Plywood Case |
A Battery Thermal Management System, or BTMS, helps to maintain a battery pack at its optimal temperature range of 20o to 45o Cregardless of ambient temperature. For each vehicle design, the required performance and cycle life of the battery pack will beconsidered to determine the specific set point for the battery pack temperature.
Metalli's Battery Thermal Management System is a complete thermal system solution that maintains the critical operating temperature ranges of vehicle batteries. Design solutions are available for both active and passive cooling circuits.
- Standard packaging or customized solutions available.
- Modine field proven patented master controls system.
- Specialized battery radiator and condenser specifically designed for BTMS applications.
- 2 - 10 kW cooling (typically 6 kW at 45ºC ambient).
- 6 kW passive cooling (10ºC ETD).
- 2 - 12 kW electric heating down to -20ºC coolant temperature.
- Total system weight < 60 kg.
- Operates native vehicle voltages.
- HV: 400 - 800 VDC.
- LV: 12 or 24 VDC option.

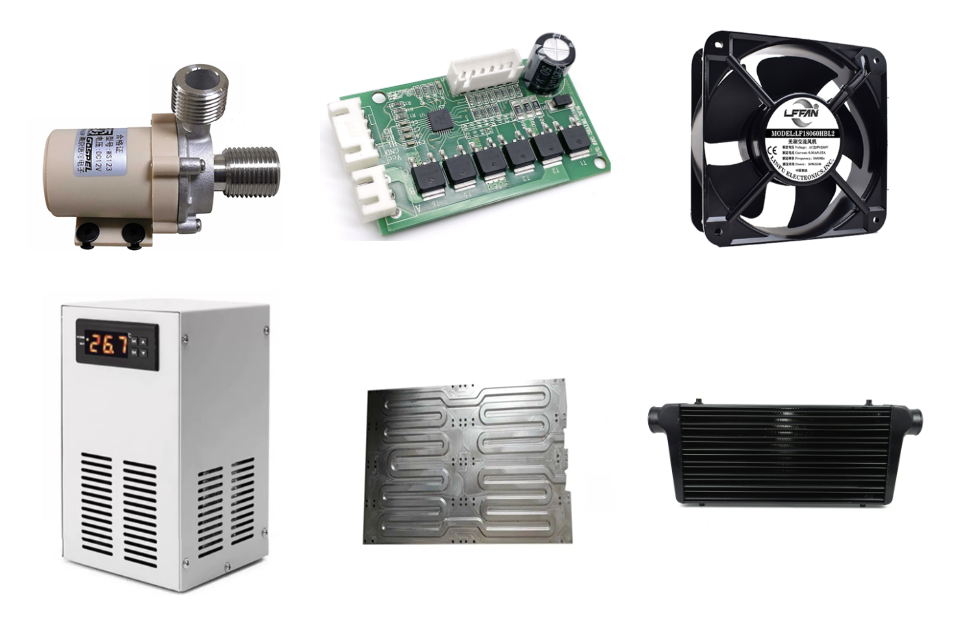

Metalli's battery thermal management system's main elements include:

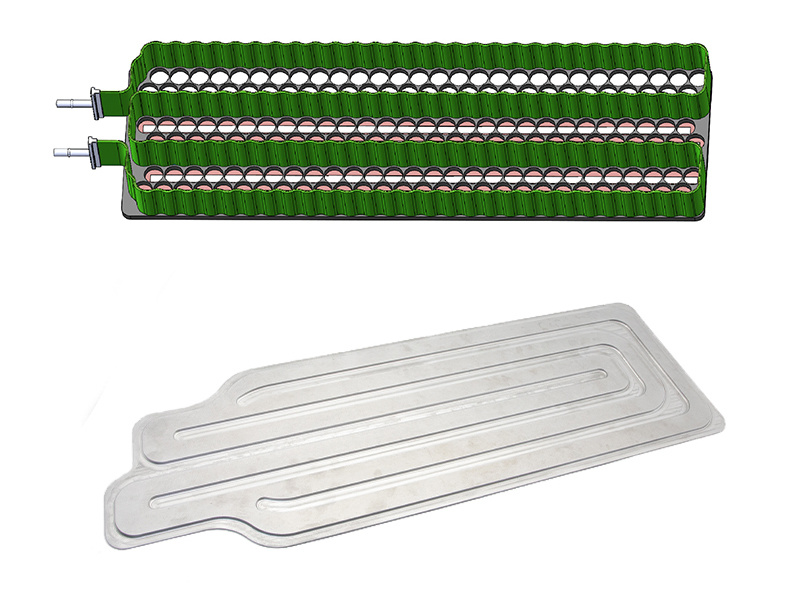

1. Cooling plate
2. One chiller unit
3. Or one radiator with fan and pump
4. Controller (temperature or flow rate control)
5. Other value-added accessories like hose, connector clamp, housing, valve, etc.
Metalli's battery thermal management system applies the best solution to solve thermal management, below are typical types:
1. Air cooling, main elements include fan and heat sink
2. Liquid cooling, main elements include cooling plate, radiator, fan, pump and controller device
3. Liquid cooling, main elements include cooling plate, chiller and controller device
4. 2 phase change cooling, main elements include cooling plate, condenser
5. Refrigerant cooling, main elements include cooling plate, condenser and compressor
6. Other custom solutions like immerse cooling
